BMS CellPad3

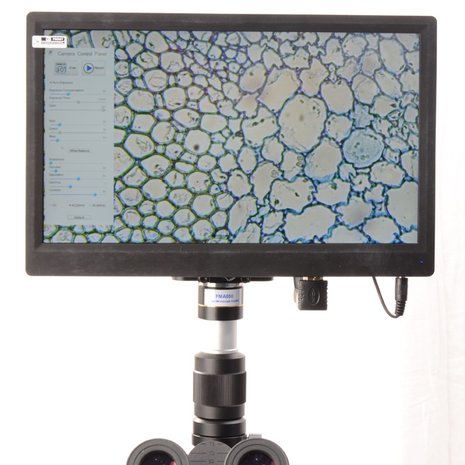

All in one C-mount camera (HDMI, WiFi, SD card) with high sensitive and ultra high performance Sony CMOS sensor. Simultaneous HDMI and WiFi output. Mouse control through USB connection. Built-in image capture and video record through SD card. On screen camera control panel by mouse. On screen toolbar with zoom, mirror imaging, freeze, cross and browser functions.Ultra fine colour engine with perfect colour reproduction capability. Support standard SDK for Windows/Mac/Linux (USB).

HDMI and WiFi are used to transfer the data to either a HDMI display (screen) or to a computer. For HDMI output: the camera control panel and toolbar are displayed on the HDMI screen. In this case the USB connected mouse can be used to set the camera and control it. For WiFi output: plug the WiFi adapter in the USB port of the camera. Connect the computer (smartphone or tablet) to the camera and open the BMS_Pix3 App. The camera can now be controlled by the computer via the on screen display.

Technical specs:




Basic Performance



Sensor and size



1080P Sony CMOS 1/ 2,8"



Pixel (in µm)



2,8 x 2,8



Frames per second



60 @ 1920 x 1080 (510 mV with 1/30 s)



30 @ 1920 x 1080 (0,15 mV with 1/30 s)




Interface & Button Functions



USB



USB camera or USB mouse



HDMI



HDMI output



DC 12V



12 V power in



SD



SD card slot



ON/OFF



Power on / off switch



LED



Power on (blue) and power off (red)




Specifications for HDMI output



UI operation



With USB mouse



Image capture



High speed in SD card



Video record



1030P 30 fps in SD card



Camera control panel



Exposure, gain, white balance, colour adjustment, sharpness and denoising control,



Toolbar



Zoom, mirror, comparison, freeze, cross, browser function




Specifications for USB output



White Balance



Auto white balance



Colour technique



Ultra fine colour engine (USB)



Capture/control API



Standard UVC for Window/Mac (USB)/Linux



Recording system



Still picture or Movie (USB)




Software environment (for USB 2.0 connection)



Operating system



Windows 7/8/8.1/10 (32 & 64 bit) Mac OS x, Linux



PC requirements



CPU: equal to Intel Core 2 2,8 GHz or higher

Memory: 4GB or more



USB 2.0 high speed port



Display 19" ”or larger



CD ROM




Operating environment



Operating temperature in ºC



-10 to 50



Operating humidity in %RH



30 - 80



Power supply



DC 12 V/2 A adaptor




Exterior



Colour



Blue cast and black sides



Dimensions (WxDxH) in mm



78 x 70 x 92



Weight in g



470




Screen:

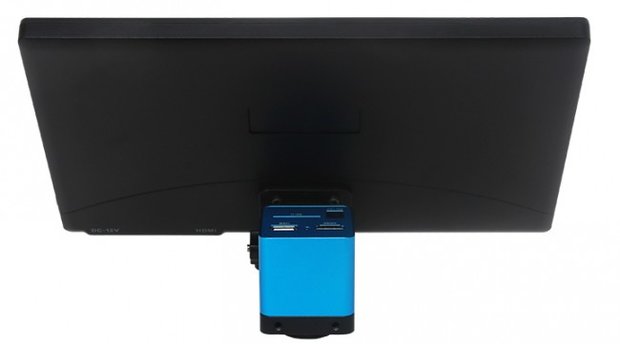

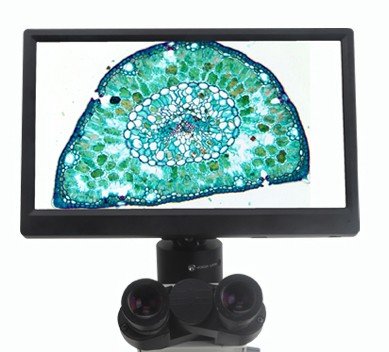

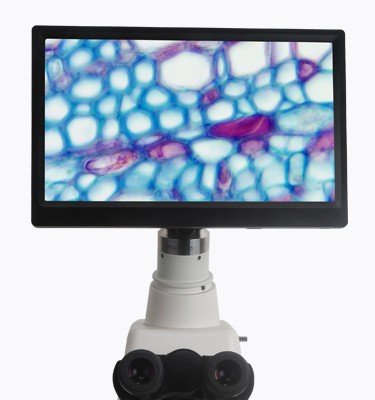

HDMI camera screen with high definition display. The Panasonic IPS LCD panel (Super TFT) guarantees a wide view and a crystal clear and high contrast image. 1080P screen with LED backlight and a 11,6 inch active area.


Technical specs:


Basic Performance




LCD panel



Panasonic IPS LCD Screen (Super TFT)



Input video format



HDMI



Resolution



1920 x 1080



Display type



16:9 Ratio 11,6 inch active matrix super TFT LCD



Typical contrast ratio



1000:01:00



Colours



16.7 million



Viewing angle



IPS Full view



Active display area



258 mm (W) x 145 mm (H)



Pixel pitch



0,134 cd/sq m



Backlight



LED Backlight




Exterior



Colour



Black



Dimension (L x H x W) in mm



281,0 x 179,0 x 15,6



Weight in g



400




Operating environment



Operating Temperature in ºC



-15 to 55



Humidity, non condensing in %



01-10-90



Power supply



AC 110 -– 220 V/DC 12 V (1 A)



Power consumption



Max. 12 Watt
