Camera, HDMI+USB+WiFi, 5,0MPixel
0 Reviews | Review toevoegen

Camera, HDMI+USB+WiFi, 5,0MPixel

Artikelnummer

76601080PHB

€ 750,00
excl. btw
€ 907,50
incl. btw
Prijs per



Aantal:
Bestellen
Op verlanglijst


| Meer

Heeft u een vraag over dit product?

Stel ons uw vraag

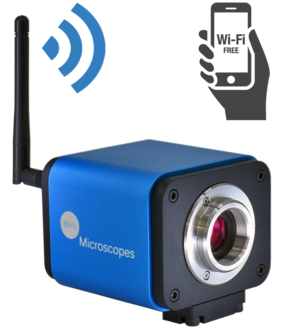

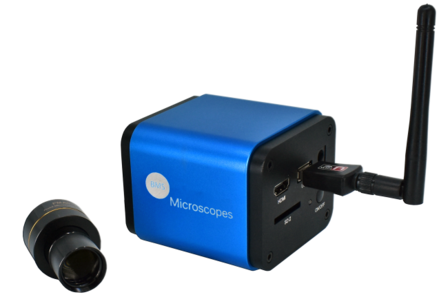

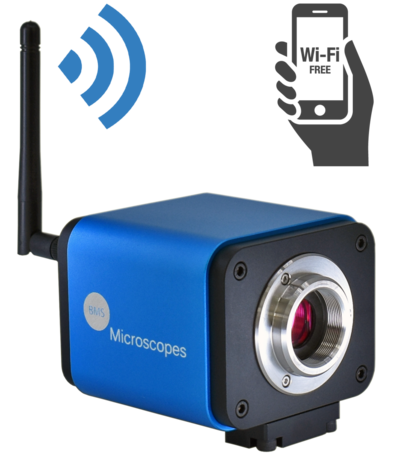

  • All in one C-mount camera (HDMI, WiFi, SD card) with high sensitive and ultra high performance Sony CMOS sensor.
  • Simultaneous HDMI and WiFi output.
  • Mouse control through USB connection.
  • Built in image capture and video record through SD card.
  • On screen camera control panel by mouse.
  • On screen toolbar with zoom, mirror imaging, freeze, cross and browser functions.
  • Ultra fine colour engine with perfect colour reproduction capability.
  • Support standard SDK for Windows/Mac/Linux (USB).

HDMI and WiFi are used to transfer the data to either a HDMI display (screen) or to a computer.

For HDMI output: the camera control panel and toolbar are displayed on the HDMI screen. In this case the USB connected mouse can be used to set the camera and control it.

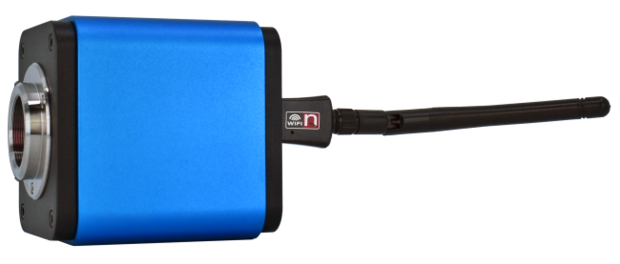

For WiFi output: plug the WiFi adapter in the USB port of the camera. Connect the computer (smartphone or tablet) to the camera and open the BMS_Pix3 App. The camera can now be controlled by the computer via the on screen display.

Technical specs:

Basic Performance

Sensor and size

1080P Sony CMOS 1/ 2,8

Pixel (in µm)

2,8 x 2,8



Frames per second

60 @ 1920 x 1080 (510 mV with 1/30s)

30 @ 1920 x 1080 (0,15 mV with 1/30s)

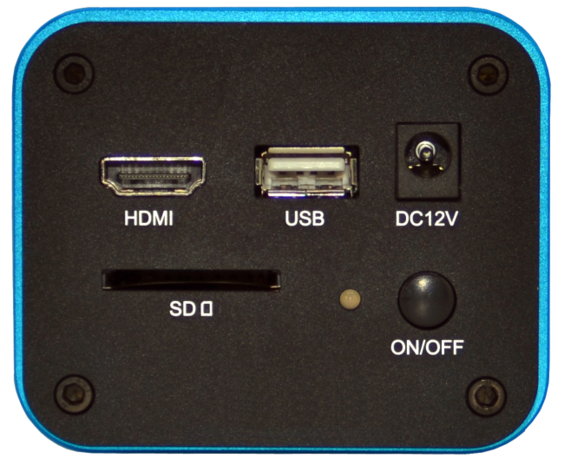

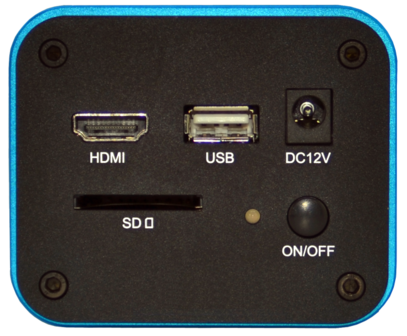

Interface & Button Functions

USB

USB WiFi adapter or USB mouse

HDMI

HDMI output

DC 12 V

12 V power in

SD

SD card slot

ON/OFF

Power on / off switch

LED

Power on (blue) and power off (red)





Specifications for HDMI output

UI operation

With USB mouse

Image capture

High speed in SD card

Video record

1030P 30 fps in SD card

Camera control panel

Exposure, gain, white balance, colour adjustment, sharpness and denoising control,

Toolbar

Zoom, mirror, comparison, freeze, cross, browser function



Specifications for USB output

White Balance

Auto white balance

Colour technique

Ultra fine colour engine (USB)

Capture/control API

Standard UVC for Window/Mac (USB)/Linux

Recording system

Still picture or Movie (USB)



Software environment (for USB 2.0 connection)

Operating system


Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux



PC requirements

CPU: equal to Intel Core 2 2,8 GHz or higher

Memory: 4 GB or more

USB 2.0 high speed port

Display 19" ”or larger

CD ROM



Operating environment

Operating temperature in ºC

-10 to 50

Operating humidity in % RH

30 - 80

Power supply

DC 12 V/2 A adaptor



Exterior

Colour

Blue cast and black sides

Dimensions (WxDxH) in mm

78 x 70 x 92

Weight in g

470
