Camera, USB2.0, CMOS 1,3MP kit
0 Reviews | Review toevoegen

Camera, USB2.0, CMOS 1,3MP kit

Artikelnummer

766601300AK1

€ 110,00
excl. btw
€ 133,10
incl. btw
Prijs per



Aantal:
Bestellen
Op verlanglijst


| Meer

Heeft u een vraag over dit product?

Stel ons uw vraag

Camera, USB2.0, CMOS 1,3MP kit

This BMS 1,3MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

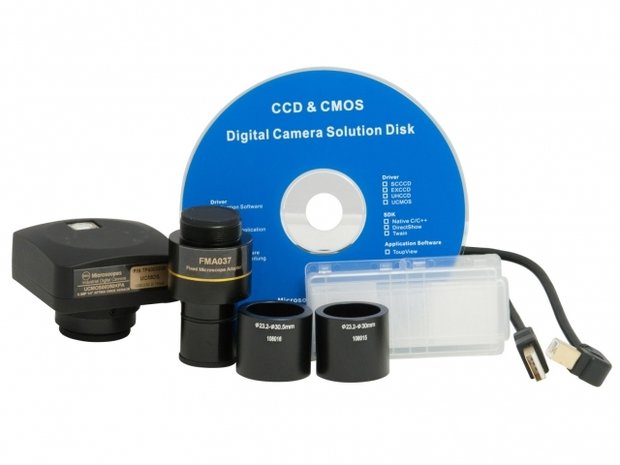

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23 mm, 30 mm, and 30.5 mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed. The included calibration slide allows you to take acurate measurements in the software by creating baseline measurements at multiple magnifications.

Sensor

Sensor Sensor Type Shutter Binning Sensitivity
MT9M111 CMOS Rolling Shutter 1x1
2x2
4x4
1.0 V/lux-sec
Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
1/3" 4.60 mm x 3.70 mm 1.3M 3.6 µm x 3.6 µm 5:4


Camera

Spectral Range
(IR Cut Filter)
Frame Rate(s)
(Maximum)
Exposure Time Connectivity
380 nm - 650 nm 15fps @ 1280x1024
26fps @ 640x512
50fps @ 320x256
0.14 ms to 2 s USB 2.0

Lens-mount Compensating Lens Power Compatibility
C-mount 0.37X 5 V over USB Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Operating Temperature Storage Temperature Operating Humidity Storage Humidity
-10°C~50°C -20°C~60°C 30~80%RH 10~60%RH


Software

OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8 GHz or comparable processor, 2GB RAM, USB2.0+ port for maximum speed
Features
BMS_pix3 Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence colour-mapping
BMS_pix3 Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Colour adjustment
Measurement tools, including lines, arcs, polygons
