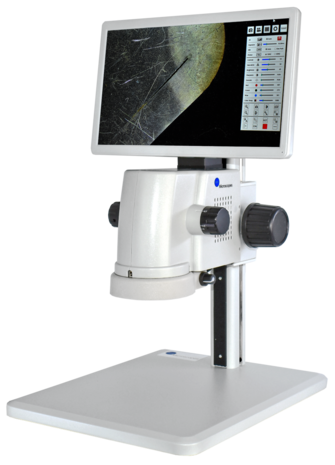

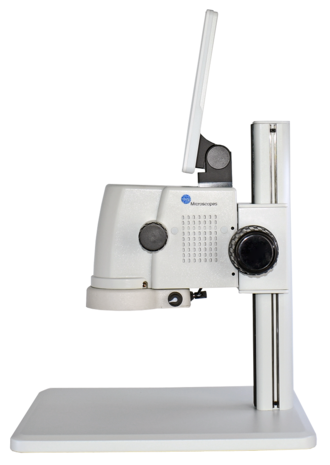

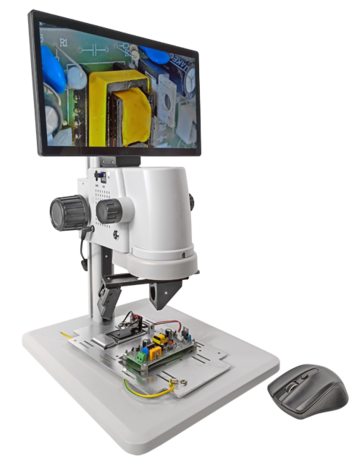

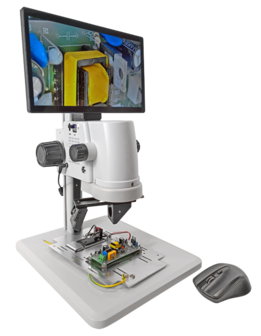

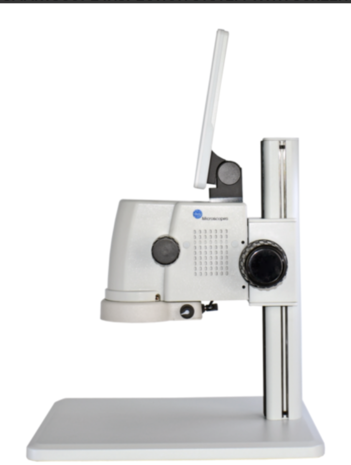

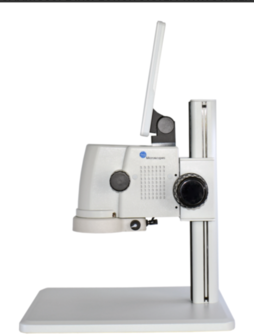

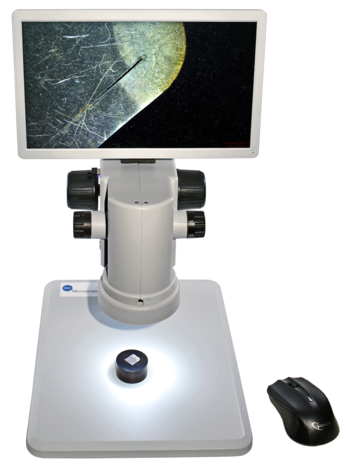

Smartscope inspection microscope comes with pillar stand and 12inch LCD monitor with a high ratio zoom lens and built-in CCD camera.
This series of microscope offers a large zoom range, long working distance, especially LCD monitor display, which is a perfect instrument for industrial inspection.
  • Objective: Zoom 0.7x ~ 4.5x, ratio 7:1
  • Total Magnification: 17.2x-110.5x
  • Working Distance: 100 mm (with standard lens)
  • Build-in: software for measurement and control
  • Sensor: CCD, 1/3 inch, 1920 x 1080 pixel @ 60fps
  • Stand size: vertical height: 350 mm, maximum focusing distance: 220 mm
  • Base Size: 320 x 260 x 16 mm
  • Illumination: 56-LED ring light with intensity control
  • Screen: IPS LCD Screen (Super TFT), 1920 x 1080, Colors: 16,7 million
  • Parallel HDMI output (for second screen Full HD)
  • external memory: 1x Mini SD card slot, 1x USB
  • external power supply, input 100 ~ 240 V AC 50/60 Hz, output DC 12 V/2 A

complete delivery with:
1x LCD Monitor
1x Metal Microscope Stand
1x Microscope Objective Body (CCD built-in)
1x Power Cable
1x Dust Cover
1x wireless mouse
1x SD-card for storage of images
